Brass
Brass is an alloy composed of copper and zinc. Brass composed of copper and zinc is called ordinary brass. If it is composed of two or more elements, it is called special brass. Brass has strong wear resistance. Special brass is also called special brass. It has high strength, high hardness and strong chemical corrosion resistance. In addition, the mechanical properties of cutting processing are also outstanding. Brass is often used to manufacture valves, water pipes, connecting pipes for internal and external air conditioners, and radiators. Brass is generally divided into copper plates, copper tubes, copper coils, copper rods, copper wires, etc.
Product introduction and classification
According to the shape, brass is divided into: brass plate, brass wire, brass tube, brass rod, etc.

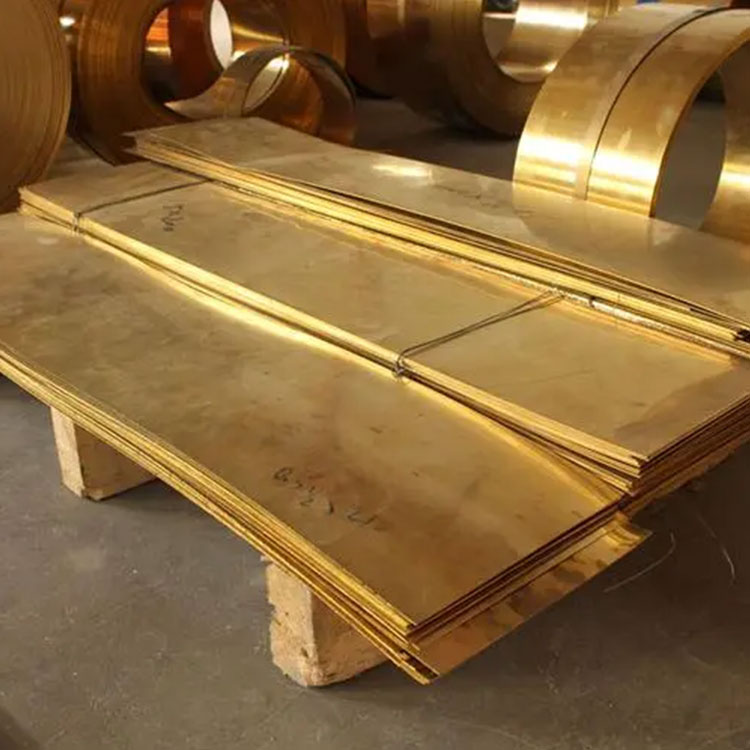

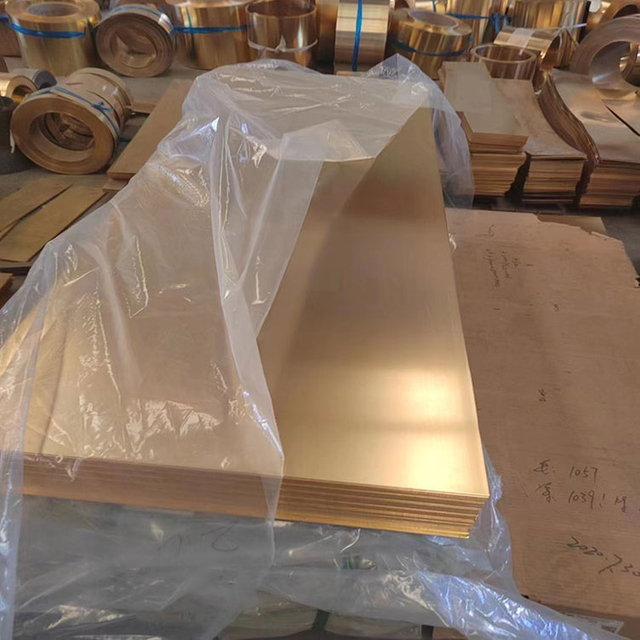

1. Brass plate
Brass plate is a widely used leaded brass with good mechanical properties and good machinability. It can withstand hot and cold pressure processing. It is used in various structural parts such as gaskets and linings for cutting and stamping. sets and so on. Tin brass plate has high corrosion resistance, good mechanical properties, and good pressure processability in cold and hot states. It can be used for corrosion-resistant parts on ships, parts and conduits in contact with steam, oil and other media.

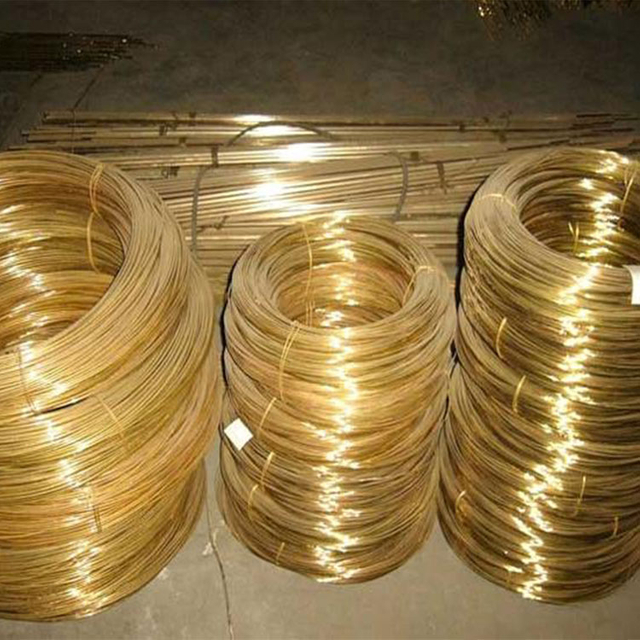

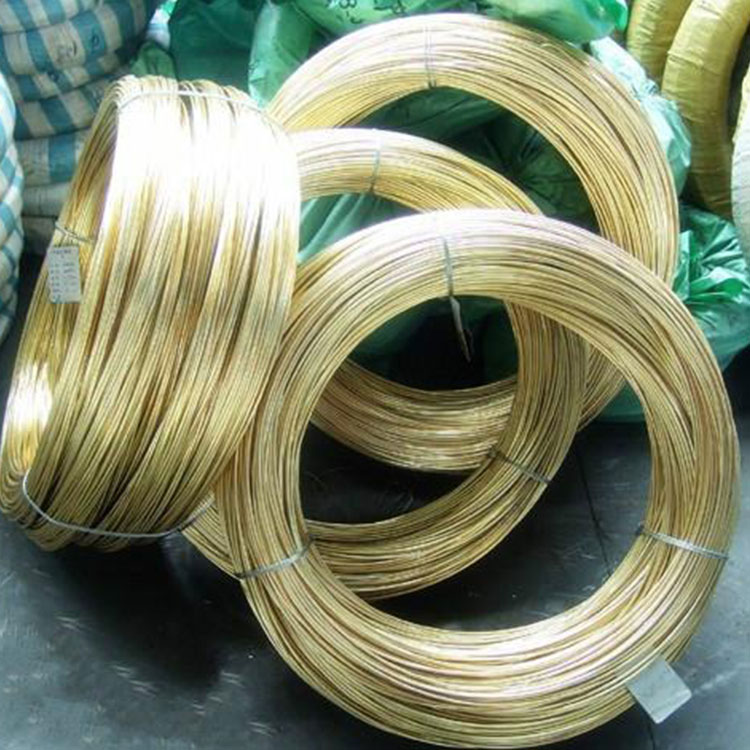

2. Brass wire
Brass wire is a kind of copper wire. The inside of the wire is made of high-quality brass, which can greatly improve the conductivity of the brass wire. The outside of the brass wire is made of insulating high-quality rubber, and some use better quality plastic as The outer sheath protection layer makes the wire have very good outer insulation performance while having extremely strong electrical conductivity. Brass wire has good mechanical properties and good plasticity in hot state. And the wire is relatively soft and durable.

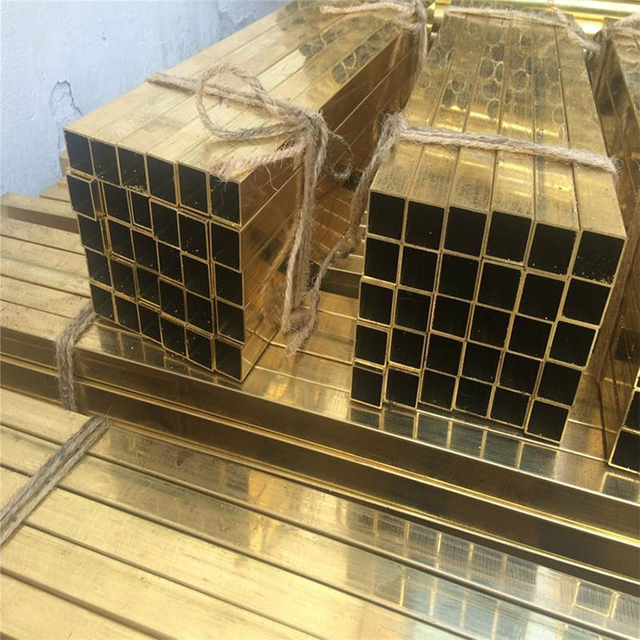

3. Brass tube
Brass tubes, a type of non-ferrous metal tubes, are pressed and drawn seamless tubes. Copper pipe has the characteristics of firmness, softness, strong wear resistance and corrosion resistance, and has become the first choice for modern contractors to install tap water pipes, heating and cooling pipes in all residential commercial buildings. Brass seamless tubes can be used in heat exchangers and condensers, cryogenic piping, subsea transportation pipes

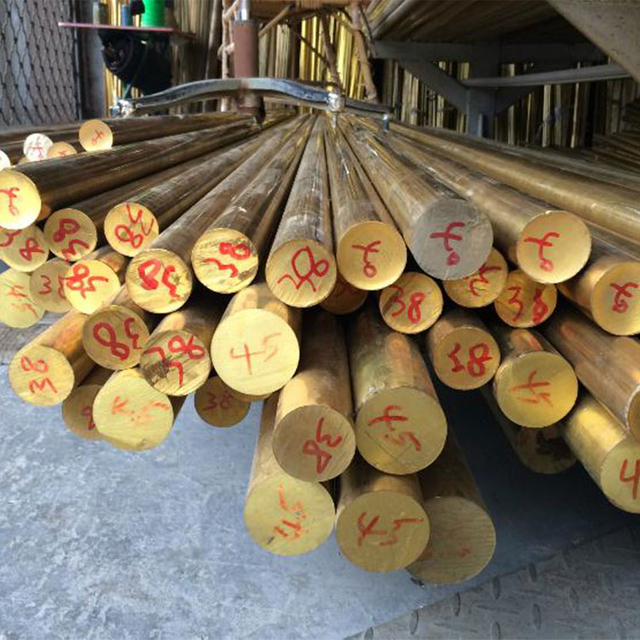

4. Brass rod
Copper rod is a kind of non-ferrous metal processing rod, which has good processing performance and high electrical conductivity. Mainly divided into brass rods and copper rods. Brass rods are rod-shaped objects made of an alloy of copper and zinc, named for their yellow color. Brass with a copper content of 56%~68% has good mechanical properties and wear resistance, and can be used to manufacture precision instruments, ship parts, gun shells, etc.
According to the material, brass is divided into: ordinary brass, aluminum brass, manganese brass, lead brass, tin brass, tin brass, nickel brass, etc.
Classification
Grade
Features Application
Plain brass H62 Composed of 62% copper and 38% zinc, It has high strength, good thermoplasticity, easy welding, good corrosion resistance, and easy to dezincification and stress cracking in some cases. Generally used in various pins, nuts, washers, wave guides and radiators, sugar industry, shipbuilding industry, paper industry parts, etc.
H63 Composed of 63% copper and 37% zinc, It has sufficient mechanical properties, good hot pressure processing performance, and general corrosion resistance. Generally used in various shallow stamping parts, sugar and marine pipe fittings, gaskets, etc., mainly rods.
H65 Composed of 65% copper and 35% zinc, It has sufficient mechanical properties and process properties, good cold and hot pressure processing performance, and golden color. Generally used in various hardware products, lighting, pipe fittings, zippers, plaques, rivets, springs, sedimentation filters, etc.
H68 Composed of 68% copper and 32% zinc, It has good plasticity and high strength, good machinability, easy welding, corrosion resistance, and good cold and hot processing performance. Generally used in various cold stamping parts, radiator shells, corrugated pipes, guide pipes, doors, lamps, etc.
H70 Composed of 70% copper and 30% zinc, It has high plasticity and high strength, good cold formability, easy welding, good corrosion resistance, and is very sensitive to stress corrosion cracking in ammonia atmosphere. Generally used in sign labels, embossing, battery caps, musical instruments, flexible hoses, pump tubes, bellows, house construction supplies, etc.
H75 Composed of 75% copper and 25% zinc, It has quite good mechanical properties, process properties and corrosion resistance. Works well under pressure both hot and cold. Generally used in low-load corrosion-resistant springs
H80 Composed of 80% copper and 20% zinc,It has good mechanic-al properties, high strength, good plasticity, and high corrosion resistance in the atmosphere, fresh water and sea water. Generally used in papermaking nets, thin-walled pipes, corrugated pipes and house construction supplies
H85 Composed of 85% copper and 15% zinc alloy, It has good mechanical properties and corrosion resistance, excellent cold working performance and good thermoformability. Generally used in architectural decoration, seals, corrugated pipes, water pipes, condensers, heat exchanger tubes and other industries
H90 Composed of 90% copper and 10% zinc alloy, It has good mechanical properties and hot and cold pressure processing properties, suitable for upsetting, rolling engraving and hot forging, etc., and has good corrosion resistance Generally used in decorations, medals, marine components, rivets, wave guides, water tank straps, battery caps, water pipes, bimetallic supplies, etc.
H96 Composed of 96% copper and 4% zinc alloy, Has good cold and hot processing properties, suitable for extrusion, stamping, drawing, forging and other processing methods, easy to weld and tin-plated; has high corrosion resistance Generally used in currency; souvenirs; stamps; detonators; shells, enamel bottom tires, wave guides, heat pipes/sheets, conductive devices, etc.
Aluminum Brass HA177-2 It has high strength and hardness, good plasticity, can be processed under hot and cold conditions, has good corrosion resistance to seawater and salt water, and is resistant to impact corrosion It is generally used as condenser pipes and other corrosion-resistant parts in ships and coastal thermal power stations.
HA177-2A The performance and composition are similar to HA177-2, adding a small amount of arsenic, antimony and beryllium improves the corrosion resistance to seawater and improves the mechanical properties. It is generally used as condenser pipes and other corrosion-resistant parts in ships and coastal thermal power stations.
Manganese brass HMn58-2 It has high corrosion resistance in seawater, superheated steam and chloride, good mechanical properties, low thermal and electrical conductivity, and is easy to carry out pressure processing in a hot state Generally used in important parts working under corrosive conditions and weak current industrial parts
Lead brass HPb59-1 Good machinability, good mechanical properties, can withstand cold and hot pressure processing, easy to braze and weld, good stability to general corrosion, Generally used in various structural parts prod-uced by hot stamping and cutting, such as screws, washers, gaskets, bushings, nuts, nozzles, etc.
Tin brass HSn62-1 It has high corrosion resistance in seawater, good mechanical properties, cold brittleness when cold working, suitable for hot pressing, good machinability, easy welding and brazing, Generally used as ship parts or other parts in contact with sea water or gasoline.
HSn70-1
HSn60-1
Iron brass Hfe59-1-1 Improve the mechanical properties and process properties of the alloy, with high strength and toughness, good plasticity at high temperature, and deformable in cold state It is generally used to make structural parts that work under the conditions of friction and seawater corrosion.
Nickel brass HNi65-5 Adding nickel can significantly improve the corrosion resistance of brass in the atmosphere and sea water. Nickel also increases the recrystallization temperature of brass, which promotes the formation of finer grains. Generally used in the manufacture of metal coins, pressure gauge tubes, paper-making nets, marine condenser tubes and other corrosion-resistant and pressure-resistant pipe fittings

Application
Brass plates are suitable for all kinds of deep extension and bending parts, such as pins, rivets, washers, nuts, conduits, barometer springs, screens, radiator parts, sugar industry, shipbuilding industry, paper industry Parts etc.

Brass wire is suitable for the manufacture of wires, cables, brushes, magnetic instruments and instruments for anti-magnetic interference, such as compasses, aviation instruments, etc.

Brass tubes are often used in the manufacture of heat exchange equipment, assembly of low-temperature pipelines in oxygen production equipment, delivery of pressurized liquids (such as lubrication systems, oil pressure systems, etc.) and pressure measuring tubes for instruments, etc.

Brass rods are suitable for air-conditioning pipes, refrigerator pipes, oil pipes, water supply pipes and various mechanical supporting materials, automotive synchronizer rings, marine pumps, valves, structural parts, friction accessories, etc.

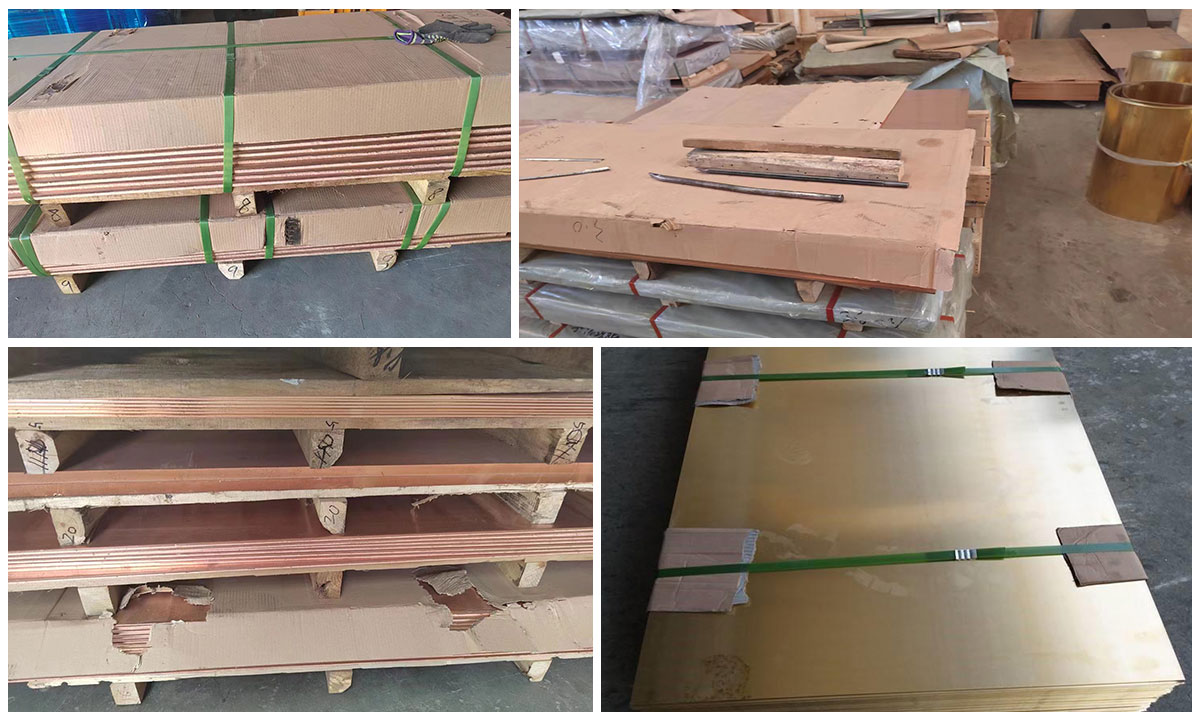

Product packaging
Generally, standard sea and land transportation packaging is adopted, with waterproof packaging with side protection , plastic straps, steel hoops and sealing rings, and wooden pallets at the bottom. Packaging and transportation can also be carried out according to customer requirements.
