Ganghua Steel focuses on the R&D and manufacturing of aluminum materials!
 |
| Quantity: | |
|---|---|

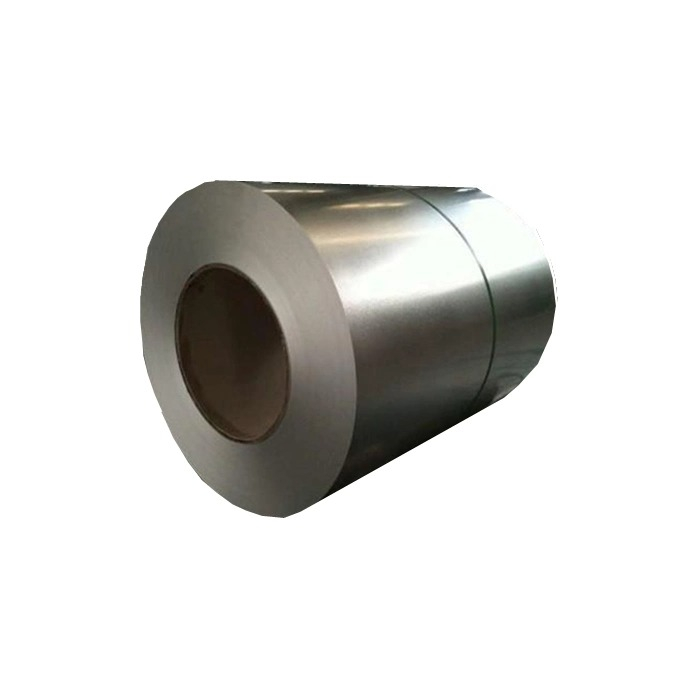

| Specification | Name:Aluminum Coil | |||||||||||
| Alloy: 1050 1060 1070 1100 1235... | ||||||||||||
| Temper: O, H12, H22, H32, H14, H24, H34, H16, H26, H36, H18, H28, H38, H19, H25, H27,H111, H112,H241, H332, F etc. | ||||||||||||
| Thickness: 0.2-280mm | ||||||||||||
| Width: Up to 2500mm | ||||||||||||
| Length: Up to 6000mm | ||||||||||||
| Surface treatment: Mill Finished, Anodized, Embossed, PVC Coated | ||||||||||||
| Trade information | MOQ: 1MT | |||||||||||
| Delivery Time: About 20Days | ||||||||||||
| Port: Qingdao,Shanghai,Tianjin | ||||||||||||
| Payment: L/C,T/T | ||||||||||||
| Alloy | Chemical Component %≤ | |||||||||||
| Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | others | Al | ||
| single | total | |||||||||||
| 5052 | 0.25 | 0.40 | 0.10 | 0.10 | 2.2-2.8 | 0.15-0.35 | \ | 0.10 | \ | 0.05 | 0.15 | remainder |
| 5005 | 0.30 | 0.70 | 0.20 | 0.20 | 0.5-1.1 | 0.10 | \ | 0.25 | \ | 0.05 | 0.15 | remainder |
| 5754 | 0.40 | 0.40 | 0.10 | 0.50 | 2.6-3.6 | 0.30 | \ | \ | 0.20 | 0.05 | 0.15 | remainder |
| 5083 | 0.40 | 0.40 | 0.10 | 0.40-1.0 | 4.0-4.9 | 0.05-0.25 | \ | \ | 0.25 | 0.05 | 0.15 | remainder |
| 5086 | 0.40 | 0.50 | 0.10 | 0.20-0.7 | 3.5-4.5 | 0.05-0.25 | \ | 0.25 | 0.15 | 0.05 | 0.15 | remainder |
| 5154 | 0.50 | 0.40 | 0.10 | 0.10 | 3.1-3.9 | 0.15-0.3 | \ | 0.20 | 0.20 | 0.05 | 0.15 | remainder |
| 5050 | 0.40 | 0.70 | 0.20 | 0.10 | 1.1-1.8 | 0.10 | \ | 0.25 | \ | 0.05 | 0.15 | remainder |
| 5454 | 0.25 | 0.40 | 0.10 | 0.50-1.0 | 2.4-3.0 | 0.05-0.20 | \ | 0.25 | 0.20 | 0.05 | 0.15 | remainder |
| 5456 | 0.25 | 0.40 | 0.10 | 0.50-1.0 | 407-5.5 | 0.05-0.20 | \ | 0.25 | 0.20 | 0.05 | 0.15 | remainder |
| Division | Description | Application | Feature |
| 1000 SERIES | 1050 1060 1070 1100 1235representative series aluminum plate is also known as pure aluminum, in the series in 1xxx series belongs to all the alumina quantity of a maximum number of series. Purity can achieve 99.00% above. | Utensil, decoration, Reflecting plate, printing plate, heatproof plate,cookware | Easy to process and weld,resistant to rust,high,conductibility of electricity and heat,low strength |
| 3000 SERIES | 3xxx series aluminum represents 3003 3004,3005, 3 A21 primarily. And can be called in the 3xxx series aluminum antirust aluminum production process more outstanding. The 3xxx series aluminum plate is by manganese as the main component. Content at 1.0-1.5 between. Is a rust-proof function better series. Conventional application in the air conditioning, the refrigerator, such as car in damp environment | Utensil(F/P, inside of rice cooker), aluminum can,material for interior and exterior of building,chemical equipment,Cellular Phone | 20% higher strength than the 1100 series, easily welded and brazed, good antirust,ability Non-heat treatable |
| 5000 SERIES | 5xxx series representatives 5052 5005 5083,5754. The 5000 series aluminum alloy aluminum belong to the more commonly used series, the main elements for magnesium, with magnesium in the amount between 3-5%. And can be called aluminum magnesium alloy. Key features for low density, high tensile strength, elongation rate is high. In the same area under the weight of the magnesium alloy aluminum less than other series. | Ship board heatproof apparatus, material for interior and exterior of building, Parts of Electronic tools.Automobile Components | Excellent corrosion resistance andweld ability together with Easy to process and weld and superior hardness &heatproof Can be anodized for increased corrosion resistance |
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Other | Al | ||
| Single | Total | ||||||||||||
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | _ | _ | 0.05 | V:0.05 | 0.03 | 0.03 | _ | 99.6 |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | _ | _ | 0.05 | V:0.05 | 0.03 | 0.03 | _ | 99.5 |
| 1100 | Si+Fe:0.95 | 0.05~0.40 | 0.05 | _ | _ | _ | 0.1 | _ | _ | 0.05 | 0.15 | 99 | |
| 1200 | Si+Fe:1.00 | 0.05 | 0.05 | _ | _ | 0.1 | _ | 0.05 | 0.05 | 0.15 | 99 | ||
| 3003 | 0.6 | 0.7 | 0.05~0.20 | 1.0~1.5 | _ | _ | _ | 0.1 | _ | 0.05 | 0.15 | R | |
| 3004 | 0.3 | 0.7 | 0.25 | 1.0~1.5 | 0.8~1.3 | _ | _ | 0.25 | _ | 0.05 | 0.15 | R | |
| 3005 | 0.6 | 0.7 | 0.3 | 1.0~1.5 | 0.20~0.6 | 0.1 | _ | 0.25 | 0.1 | 0.05 | 0.15 | R | |
| 3105 | 0.6 | 0.7 | 0.3 | 0.30~0.8 | 0.20~0.8 | 0.2 | _ | 0.4 | 0.1 | 0.05 | 0.15 | R | |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.50~1.1 | 0.1 | _ | 0.25 | _ | _ | 0.05 | 0.15 | R |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2~2.8 | 0.15~0.35 | _ | 0.1 | _ | _ | 0.05 | 0.15 | R |
| 5083 | 0.4 | 0.4 | 0.1 | 0.40~1.0 | 4.0~4.9 | 0.05~0.25 | _ | 0.25 | _ | 0.15 | 0.05 | 0.15 | R |
| 5086 | 0.4 | 0.5 | 0.1 | 0.20~0.7 | 3.5~4.5 | 0.05~0.25 | _ | 0.25 | _ | 0.15 | 0.05 | 0.15 | R |
